H igh Voltage 1" Forged Steel Pins – Long Shank for Wood or Composite Crossarms and short Shank for steel crossarm. ANSI Standard Nylon or Lead Threads Galvanized are per ASTMA153 The forged design of high voltage insulator pins includes a wide base to distribute load stresses. Each pin is packaged with hardware assembled as show in pic 2 and 2 and ob PDF

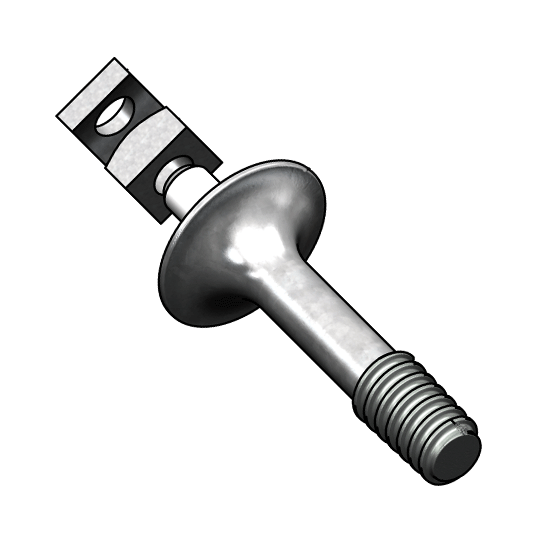

CROSSARM PIN

High Voltage 1" Forged Steel Pins – Long Shank for Wood or Composite Crossarms and short Shank for steel crossarm.

ANSI Standard Nylon or Lead Threads Galvanized are per ASTMA153
The forged design of high voltage insulator pins includes a wide base to distribute load stresses. Each pin is packaged with hardware assembled as show in pic 2 and 2 and ob PDF

Categories: LINE HARDWARE

CROSSARM PIN

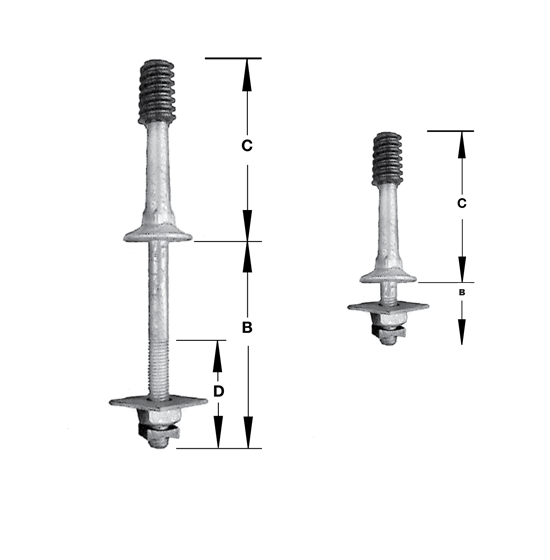

Product No.	Description	TYPE	LENGTH	THREADED LENGTH	WEIGHT KG	Add Qty to Cart
MP881	Crossarm Pin	5/8"	5-3/4" B - 5" C	3"	.68KG	ADD
MP882	Crossarm Pin	5/8"	6-1/2" B - 5" C	3"	.92KG	ADD
MP883	Crossarm Pin	5/8"	6-1/2" B - 6" C	3"	.93KG	ADD
MP884	Crossarm Pin	5/8"	5-3/4" B - 6" C	3"	1.01KG	ADD
MPS886	Crossarm Pin	5/8"	1-1/2" B - 5" C	1-1/4"	.44KG	ADD
MPS887	Crossarm Pin	5/8"	1-1/2" B - 6" C	1-1/4"	.6KG	ADD
