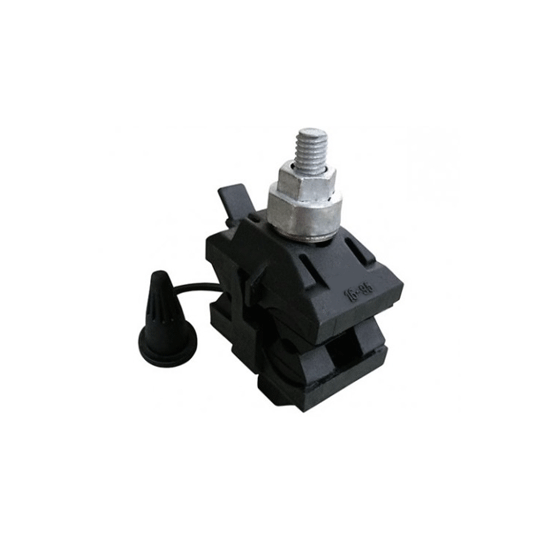

PIERCING CONNECTOR

Designed for derivation connections through piercing the insulation in low-voltage networks and aerial extensions.
Application: Insulated aluminum and/or copper conductors with insulations in XLPE or PVC with 1.5 mm² to 240 mm².
Insulation sleeve exceeds 6kv (1mn) dielectric withstand
voltage when immersed in water.

Installation is made easier because the connector is in the
open position prior tightening due to the elastic nature of the
sleeve. When Ordering Select one of two Bolt Type

Categories: CONNECTORS

PIERCING CONNECTOR

Product No.	Description	MAIN CONDUCTOR (MM²)	DERIV CONDUCTOR (MM²)	TYPE	Add Qty to Cart
MPP30	Piercing Connector	10-95	1.5-10	1 Bolt	ADD
MPP40	Piercing Connector	10-150	1.5-10	1 Bolt	ADD
MPP50	Piercing Connector	16-95	4-35	1 or 2 Bolt	ADD
MPP55	Piercing Connector	16-150	4-35	1 or 2 Bolt	ADD
MPP60	Piercing Connector	25-150	25-150	1 or 2 Bolt	ADD
MPP70	Piercing Connector	50-240	25-100	1 or 2 Bolt	ADD
MPP150	Piercing Connector	35-150	50-240	1 or 2 Bolt	ADD
MPP240	Piercing Connector	70-240	70-240	1 or 2 Bolt	ADD
