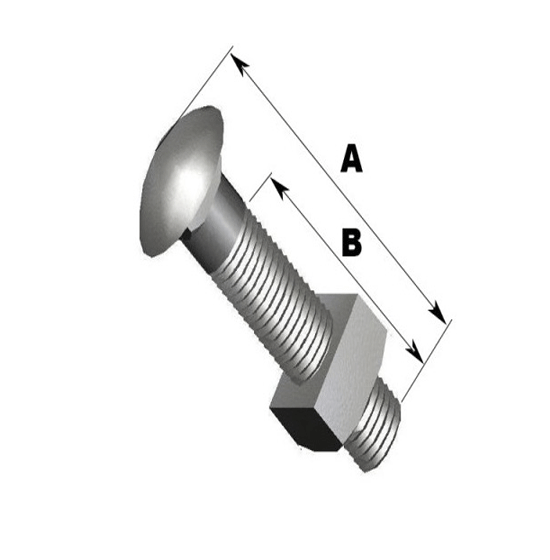

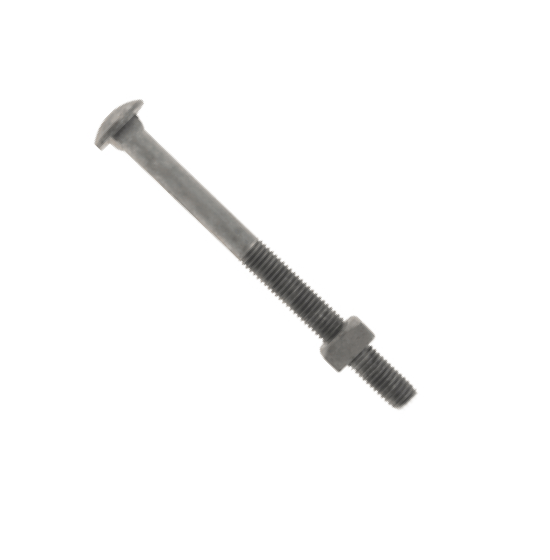

C arriage Bolts have square nuts, finished points and rolled threads, heads have square shoulders. Open forged steel. Hot dip galvanized to ASTM standards. Corrosion for over 20years double hot dipped galvanized Tensile Strength are rated for 3/8” at 5,000 LBS Tensile Strength are rated for 1/2” at 9,000 LBS Tensile Strength are rated for 3/4” at 12,000 LBS

CARRIAGE BOLTS

Product No.	Description	SIZE	THREADED LENGTH	WEIGHT	Add Qty to Cart
MP8634	Carriage Bolt	3/8” X 4”	3”	.073kg	ADD
PM8634A	Carriage Bolt	3/8” X 4-1/2”	3”	.077kg	ADD
MP8635	Carriage Bolt	3/8” X 5”	3”	.081kg	ADD
PM8636	Carriage Bolt	3/8” X 6”	3”	.09kg	ADD
PM8637	Carriage Bolt	3/8” X 7”	3”	0.1kg	ADD
PM8638	Carriage Bolt	3/8” X 8”	4”	0.122kg	ADD
PM86310	Carriage Bolt	3/8” X 10”	4”	0.136kg	ADD
PM86312	Carriage Bolt	3/8” X 12”	4”	0.16kg	ADD
PM86314	Carriage Bolt	3/8” X 14”	4”	0.23kg	ADD
PM86334A	Carriage Bolt	1/2” X 4-1/2”	3”	0.14kg	ADD
PM86335	Carriage Bolt	1/2” X 5”	3”	-	ADD
PM86335A	Carriage Bolt	1/2” X 5-1/2”	3”	-	ADD
PM86336	Carriage Bolt	1/2” X 6”	3”	-	ADD
PM86337	Carriage Bolt	1/2” X 7”	4”	-	ADD
PM86338	Carriage Bolt	1/2” X 8”	4”	-	ADD
PM863310	Carriage Bolt	1/2” X 10”	4”	-	ADD

CARRIAGE BOLTS

CARRIAGE BOLTS

Categories: LINE HARDWARE
