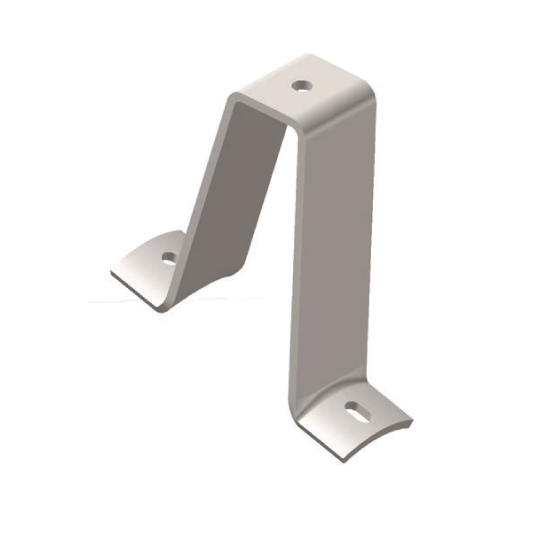

INSULATOR BRACKET


lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

I NSULATOR BRACKETS THIS SIDE POST TYPE ARE USED FOR MOUNTING POST TYPE INSULATORS. FOR ROUND POLE USE, THE BASE IS CURVED IN ORDER TO ESTABLISH A CONTOUR FIT TO THE POLE. THESE BRACKETS GIVE THE INSTALLER THE ABILITY TO MOUNT THE INSULATOR IN A PHASE OVER PHASE CONSTRUCTION OR ON OPPOSITE SIDES OF EACH OTHER FOR “ARMLESS" CONSTRUCTION. CUSTOM SIZES ARE AVAILABLE UPON REQUEST MILL FORGED STEEL HOT DIPPED GALVANIZED TO ASTM A 153.

thumb
thumb
thumb

INSULATOR BRACKET

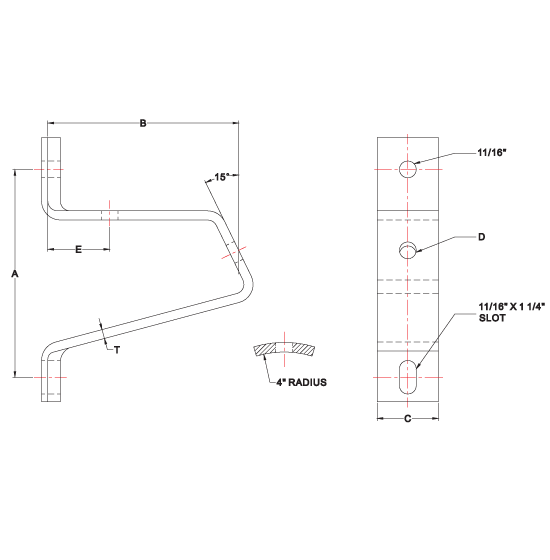

Product No. Description SPECSWEIGHT Add Qty to Cart
MPPB1075 Insulator Bracket 10"A 7-1/2"B 3"C 11/ 16"D 3"E 5/16"T 7Lb     ADD
MPPB10120 Insulator Bracket 10"A 12"B 4"C 13/16"D 4-1/2"E 3/8"T 14Lb     ADD
