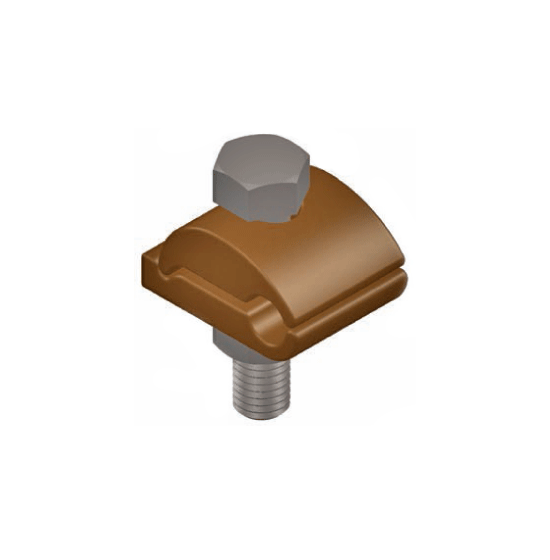

GROUND CLAMP SINGLE GROOVE


lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

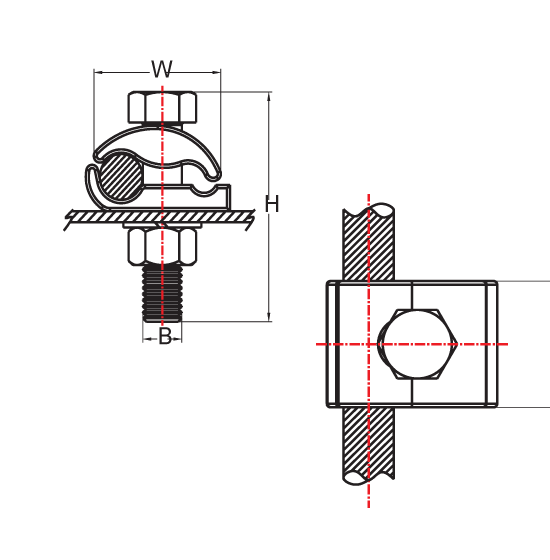

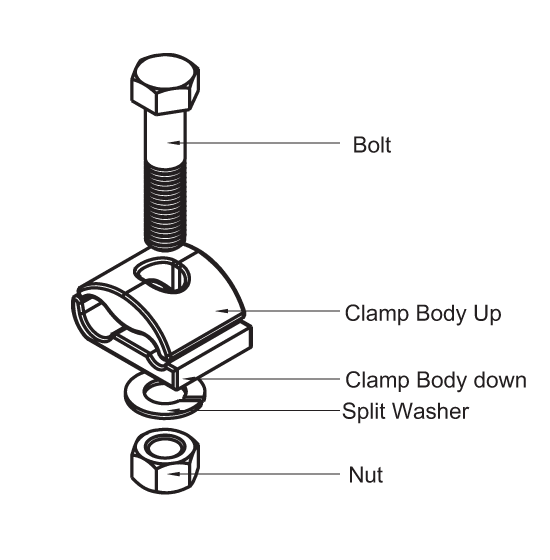

S INGLE GROOVE GROUND C LAMPS ARE USED TO CLAMP COPPER CABLE TO A FLAT BAR. IF THE FLAT BAR IS THICKER THAN THE 1/ 4" SHOWN, THEN ADD THE THICKNESS TO THE PART by using larger bolts. Request longer bolt for thicker bus bar. BODY -BRONZE ALLOY Bolts -STAINLESS STEEL, GALVANIZED STEEL, OR SILICON BRONZE as requested

thumb
thumb
thumb
thumb

GROUND CLAMP SINGLE GROOVE


Product No. Description CONDUCTOR (AWG/MCM)TAP RANGEWEIGHT Add Qty to Cart
MPC-141 Ground Clamp Single G 6 SOL.- 2/ 0 STR .162"-.419" .41LB     ADD
MPC- 141A-02 Ground Clamp Single G 4 SOL.- 300 MCM .204"-.630" .5LB     ADD
MPC- 141-03 Ground Clamp Single G 300-500 MCM .629"-.813" 1.1LB     ADD
MPC- 141-07 Ground Clamp Single G 4 SOL.- 300 MCM .204"-.630" 1.2Lb     ADD
MPC- 141-10 Ground Clamp Single G 750-1000 MCM .998"-1.152" .87LB     ADD
