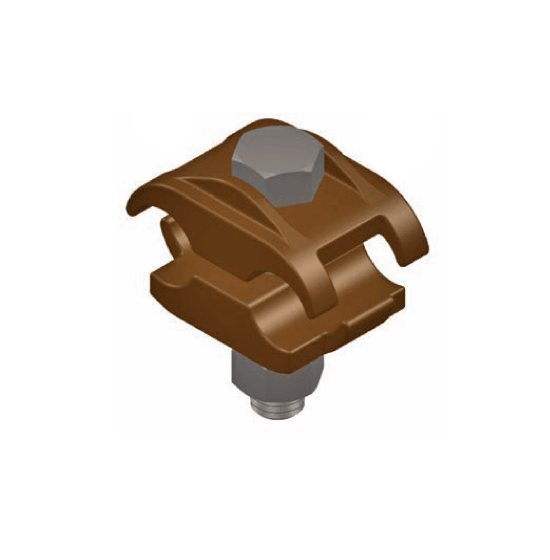

DOUBLE GROOVE GROUND CLAMP

lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

D OUBLE GROOVE GROUND CLAMPS ARE USED TO CLAMP TWO COPPER CABLES TO FLAT BAR. IF THE FLAT B AR IS THICKER THAN THE 1/ 4" REQUESR LONGER BOLTS. SPECIFY THICKNESS OF BAR WHEN ORDERING BODY -BRONZE ALLOY Bolts -STAINLESS STEEL, GALVANIZED STEEL, OR SILICON BRONZE as requested

thumb
thumb
thumb
thumb

DOUBLE GROOVE GROUND CLAMP

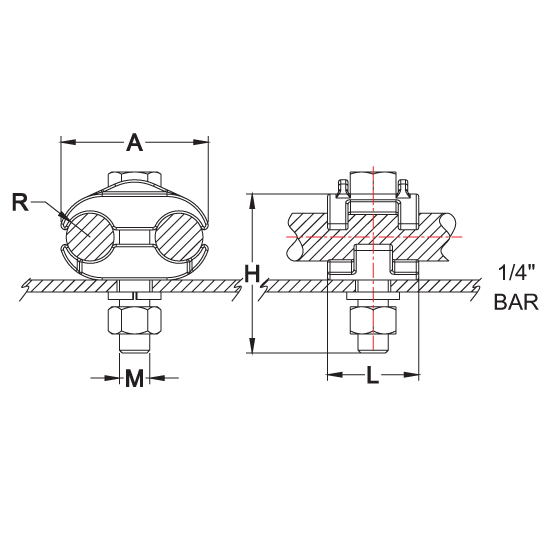

Product No. Description SPECSWEIGHT Add Qty to Cart
MPC- 143-01 Double Ground Clamp 1 1/ 2"A 2 1/4"H 2"W 3/ 8"B .61LB     ADD
MPC- 143A-02 Double Ground Clamp 1 1/2"A 2 5/ 8"H 2 1/ 4"W 1/ 2"B .7LB     ADD
MPC- 143B-02 Double Ground Clamp 1 3/4"A 2 3/ 4"H 2 5/ 16"W 5/ 8"B .9LB     ADD
MPC- 143-03 Double Ground Clamp 2"A 2 3/4"H 2 5/8"W 1/2" .85Lb     ADD
