UN-INSULATED SLEEVES

A luminum Sleeve For aluminum to copper or aluminum-to-aluminum with solid center barrier. Pre-filled with inhibitor and sealed end cap barrel that seals out moisture. Color-coded for easy identification sizes for industry standards. Easy entry trough cap or without , made with 99.99% oxygen free extruded aluminum for more conductivity. As much as 30% more connected electrons flow. Crimping size of die and cable size are also printed on external body ANSI C 119

UN-INSULATED SLEEVES

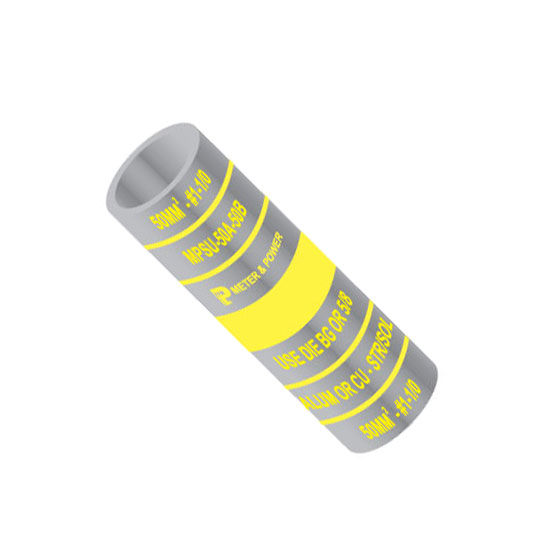

Aluminum Sleeve
For aluminum to copper or aluminum-to-aluminum with solid center barrier.

Pre-filled with inhibitor and sealed end cap barrel that seals out moisture.

Color-coded for easy identification sizes for industry standards.

Easy entry trough cap or without , made with 99.99% oxygen free extruded aluminum for more conductivity.
As much as 30% more connected electrons flow.

Crimping size of die and cable size are also printed on external body ANSI C 119

Categories: ENTRANCE CONNECTOR

UN-INSULATED SLEEVES

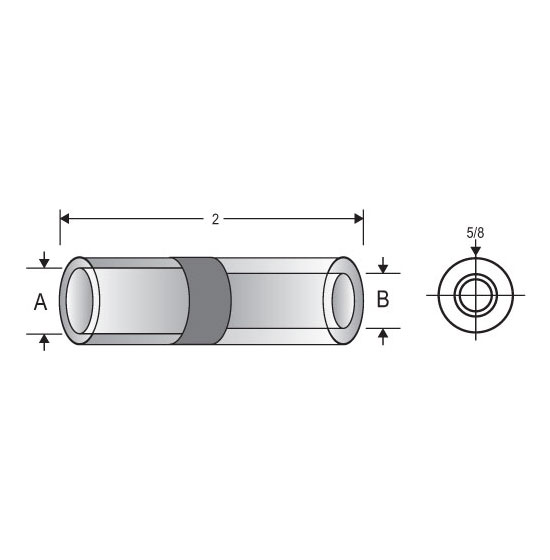

Product No.	Description	A CBLE SIZE	B CABLE SIZE	Add Qty to Cart
MPSU-06A-06B	ENTRANCE SLEEVE CONNECTOR	Cable 6mm2 or #10-#9 BROWN	Cable 6mm2 or #10-#9 BROWN	ADD
MPSU-10A-06B	ENTRANCE SLEEVE CONNECTOR	Cable 10mm2 or #8-#7 GREEN	Cable 6mm2 or #10-#9 BROWN	ADD
MPSU-10A-10B	ENTRANCE SLEEVE CONNECTOR	Cable 10mm2 or #8-#7 GREEN	Cable 10mm2 or #8-#7 GREEN	ADD
MPSU-16A-06B	ENTRANCE SLEEVE CONNECTOR	Cable 16mm2 or #6-#5 BLUE	Cable 6mm2 or #10-#9 BROWN	ADD
MPSU-16A-10B	ENTRANCE SLEEVE CONNECTOR	Cable 16mm2 or #6-#5 BLUE	Cable 10mm2 or #8-#7 GREEN	ADD
MPSU-16A-16B	ENTRANCE SLEEVE CONNECTOR	Cable 16mm2 or #6-#5 BLUE	Cable 16mm2 or #6-#5 BLUE	ADD
MPSU-25A-06B	ENTRANCE SLEEVE CONNECTOR	Cable 25mm2 or #4-#3 ORANGE	Cable 6mm2 or #10-#9 BROWN	ADD
MPSU-25A-10B	ENTRANCE SLEEVE CONNECTOR	Cable 25mm2 or #4-#3 ORANGE	Cable 10mm2 or #8-#7 GREEN	ADD
MPSU-25A-16B	ENTRANCE SLEEVE CONNECTOR	Cable 25mm2 or #4-#3 ORANGE	Cable 16mm2 or #6-#5 BLUE	ADD
MPSU-25A-25B	ENTRANCE SLEEVE CONNECTOR	Cable 25mm2 or #4-#3 ORANGE	Cable 25mm2 or #4-#3 ORANGE	ADD
MPSU-35A-06B	ENTRANCE SLEEVE CONNECTOR	Cable 35mm2 or #2-#1 RED	Cable 6mm2 or #10-#9 BROWN	ADD
MPSU-35A-10B	ENTRANCE SLEEVE CONNECTOR	Cable 35mm2 or #2-#1 RED	Cable 10mm2 or #8-#7 GREEN	ADD
MPSU-35A-16B	ENTRANCE SLEEVE CONNECTOR	Cable 35mm2 or #2-#1 RED	Cable 16mm2 or #6-#5 BLUE	ADD
MPSU-35A-25B	ENTRANCE SLEEVE CONNECTOR	Cable 35mm2 or #2-#1 RED	Cable 25mm2 or #4-#3 ORANGE	ADD
MPSU-35A-35B	ENTRANCE SLEEVE CONNECTOR	Cable 35mm2 or #2-#1 RED	Cable 35mm2 or #2-#1 RED	ADD
MPSU-50A-10B	ENTRANCE SLEEVE CONNECTOR	Cable 50mm2 or #1-#1/0 YELLOW	Cable 10mm2 or #8-#7 GREEN	ADD
MPSU-50A-16B	ENTRANCE SLEEVE CONNECTOR	Cable 50mm2 or #1-#1/0 YELLOW	Cable 16mm2 or #6-#5 BLUE	ADD
MPS-50A-25B	ENTRANCE SLEEVE CONNECTOR	Cable 50mm2 or #1-#1/0 YELLOW	Cable 25mm2 or #4-#3 ORANGE	ADD
MPSU-50A-35B	ENTRANCE SLEEVE CONNECTOR	Cable 50mm2 or #1-#1/0 YELLOW	Cable 35mm2 or #2-#1 RED	ADD
MPSU-50A-50B	ENTRANCE SLEEVE CONNECTOR	Cable 50mm2 or #1-#1/0 YELLOW	Cable 50mm2 or #1-#1/0 YELLOW	ADD
