T RUNNION CLAMPS ARE USED WITH CLAMP TOP LINE POST INSULATORS. THE REVERSIBLE KEEPER GIVES THE INSTALLER A WIDE CONDUCTOR RANGE. EACH CLAMP CONTAINS A RIV SUPPRESSOR SPRING. MATERIAL FOR “LPC” TYPE BODY & KEEPER-ALUMINUM ALLOY 356-T6. MATERIAL FOR “FLPC” TYPE HOT DIPPED GALVANIZED TO ASTM A153

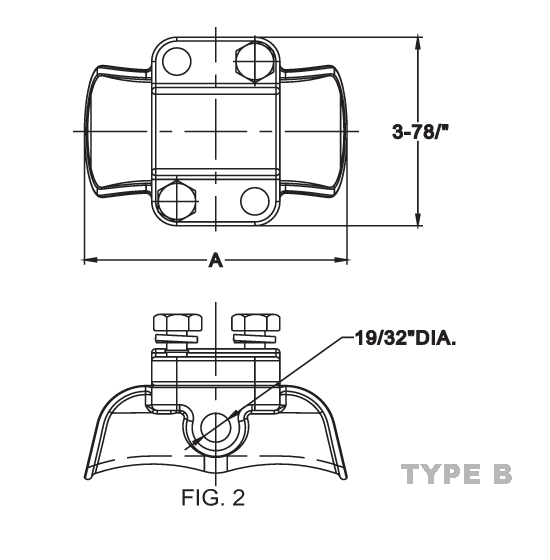

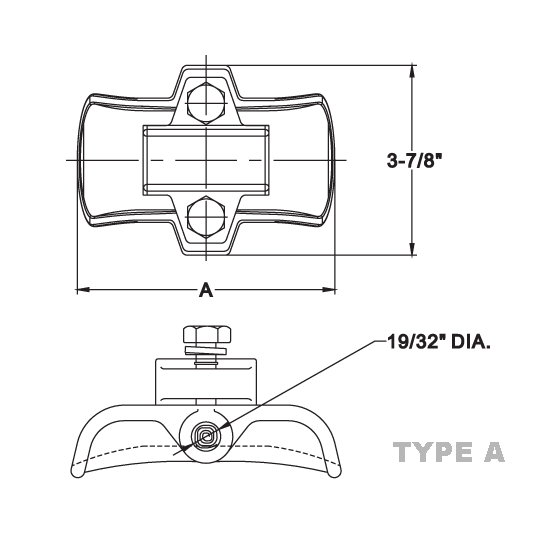

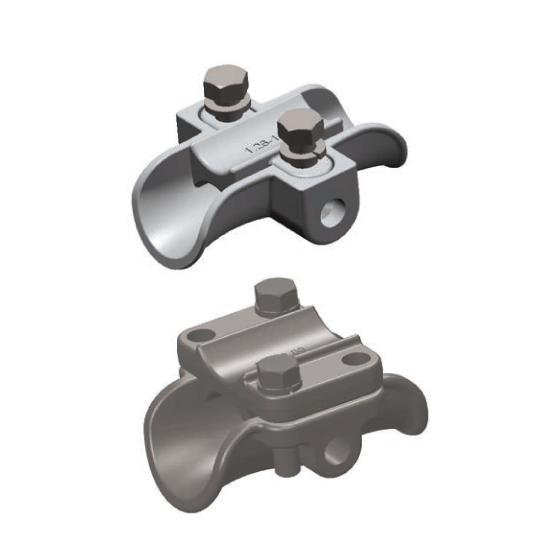

TRUNNION CLAMP

TRUNNION CLAMPS ARE USED WITH CLAMP TOP LINE POST INSULATORS. THE REVERSIBLE KEEPER
GIVES THE INSTALLER A WIDE CONDUCTOR RANGE. EACH CLAMP CONTAINS A RIV SUPPRESSOR SPRING.
MATERIAL FOR “LPC” TYPE BODY & KEEPER-ALUMINUM ALLOY 356-T6.
MATERIAL FOR “FLPC” TYPE

HOT DIPPED GALVANIZED TO ASTM A153

Categories: LINE HARDWARE ,CLAMPS

TRUNNION CLAMP

Product No.	Description	TYPE	RANGE	Add Qty to Cart
MPLPC – 57	Tunning Clamp	AL	.23” – .57”	ADD
MPLPC – 86	Tunning Clamp	AL	.35” – .86”	ADD
MPLPC – 118	Tunning Clamp	AL	.50” – 1.18”	ADD
MPLPC – 150	Tunning Clamp	AL	.93” – 1.50”	ADD
MPLPC – 200	Tunning Clamp	AL	1.5” – 2”	ADD
MPFLPC – 57	Tunning Clamp	STEEL	.23” – .57”	ADD
MPFLPC – 86	Tunning Clamp	STEEL	.35” – .86”	ADD
MPFLPC – 118	Tunning Clamp	STEEL	.50” – .1.18”	ADD
MPFLPC – 150	Tunning Clamp	STEEL	.93” – 1.50”	ADD
MPFLPC – 200	Tunning Clamp	STEEL	1.50” – 2”	ADD
