S TRAIGHT DEADEND CLAMPS ARE USED PRIMARILY FOR DISTRIBUTION AND LIGHT TRANSMISSION WORK. FOR SOCKET FITTED OR CLEVIS FITTED. THE MATERIAL ON THE ABOVE STRAIGHT LINE DEADEND CLAMPS IS AS FOLLOWS : BODY AND KEEPER: A356 – T6 ALUMINUM ALLOY CLEVIS PIN AND BOLTS: GALVANIZED STEEL COTTER PIN: STAINLESS STEEL HARDWARE AND STEEL BODY ARE HOT DIPPED GALVANIZED TO ASTM A153

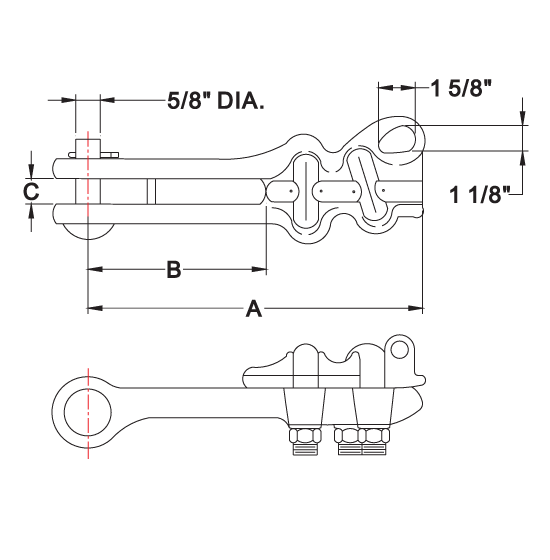

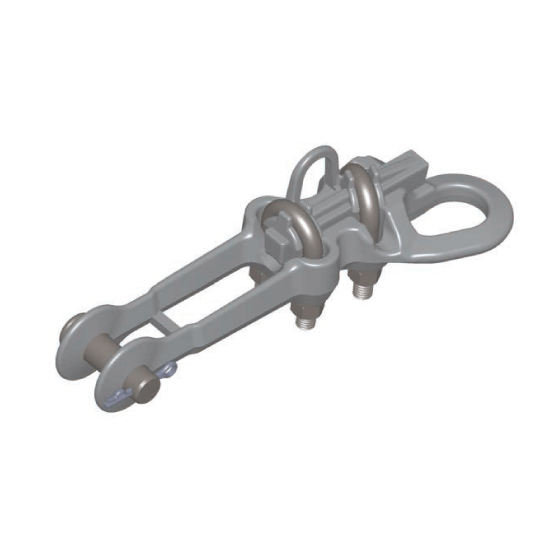

STRAIGHT DEADEND CLAMP AL

STRAIGHT DEADEND CLAMPS ARE USED PRIMARILY FOR DISTRIBUTION AND LIGHT TRANSMISSION WORK.
FOR SOCKET FITTED OR CLEVIS FITTED.

THE MATERIAL ON THE ABOVE STRAIGHT LINE DEADEND CLAMPS IS AS FOLLOWS :
BODY AND KEEPER: A356 – T6 ALUMINUM ALLOY
CLEVIS PIN AND BOLTS: GALVANIZED STEEL
COTTER PIN: STAINLESS STEEL

HARDWARE AND STEEL BODY ARE HOT DIPPED GALVANIZED TO ASTM A153

Categories: CONNECTORS ,LINE HARDWARE

STRAIGHT DEADEND CLAMP AL

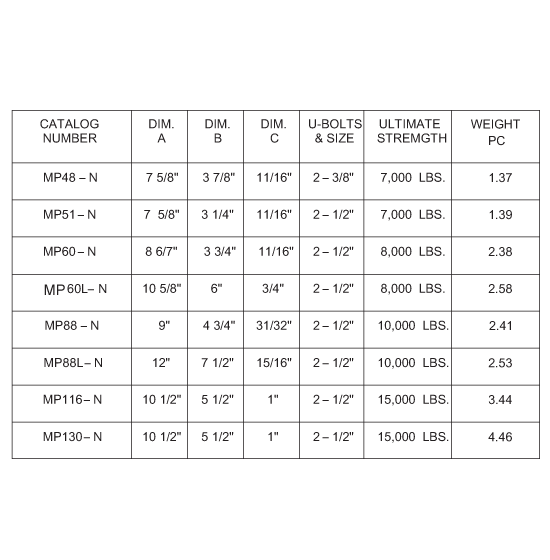

Product No.	Description	RANGE	A CBLE SIZE	Add Qty to Cart
MP48-N	Dead End Clamp	.18" - .502"	#6 –#3/0 AL #6 – #3/0 ACSR	ADD
MP51-N	Dead End Clamp	.18" - .51"	#6 –#3/0 AL #6 – #3/0 ACSR	ADD
MP60-N	Dead End Clamp	.1 9" - . 60"	#4 – #266.8 AL #6 – #266.8 ACSR	ADD
MP60L-N	Dead End Clamp	.1 9" - . 60"	#4 – #266.8 AL #6 – #266.8 ACSR	ADD
MP88-N	Dead End Clamp	.3 1" - . 88"	#1 – #600 AL #2 – #477 ACSR	ADD
MP88L-N	Dead End Clamp	.31" -.88"	#1 –#900 AL #2 – #556 ACSR	ADD
MP116-N	Dead End Clamp	.31" - 1.16"	#300 – #1272 AL	ADD
MP130-N	Dead End Clamp	.64" - .1.30"	#266.8 – #1113 ACSR	ADD
