Meter & Power

A luminum Sleeve For aluminum to aluminum with solid center barrier. Pre-filled with inhibitor and sealed end cap barrel that seals out moisture. Color-coded for easy identification sizes for industry standards. made with 99.99% oxygen free extruded aluminum for more conductivity. As much as 30% more connected electrons flow. Crimp dies are specified on product design for high wire and tensile strength Tin Plated for max conductivity. Crimping size of die and cable size are also printed on external body ANSI C 119 .4

SPLICE CONNECTOR AL

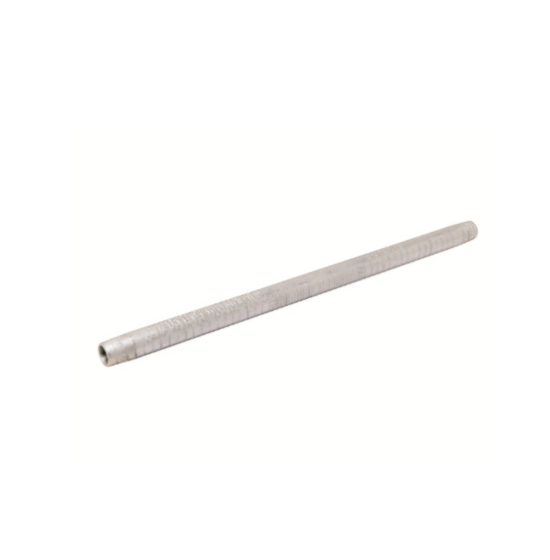

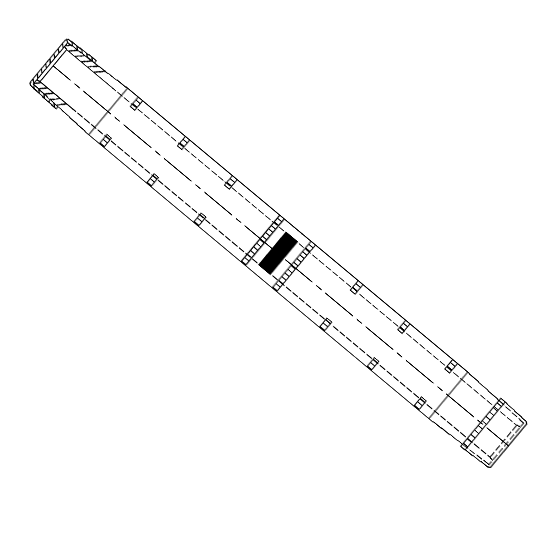

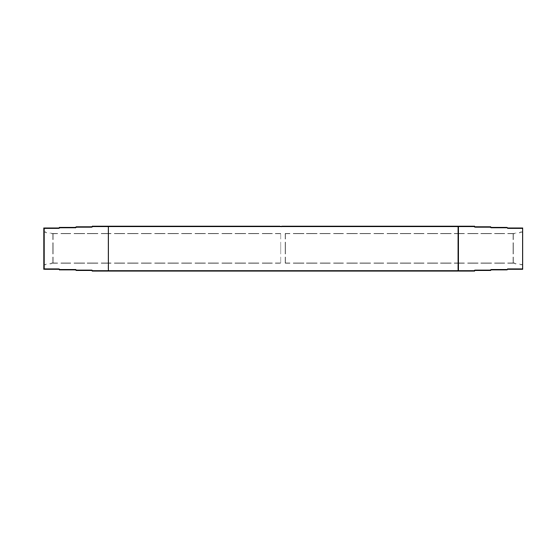

Aluminum Sleeve
For aluminum to aluminum with solid center barrier.

Pre-filled with inhibitor and sealed end cap barrel that seals out moisture.
Color-coded for easy identification sizes for industry standards.

made with 99.99% oxygen free extruded aluminum for more conductivity.
As much as 30% more connected electrons flow.

Crimp dies are specified on product design for high wire and tensile strength Tin Plated for max conductivity.
Crimping size of die and cable size are also printed on external body ANSI C 119 .4

Categories: SLEEVE CONNECTORS

SPLICE CONNECTOR AL

Product No.	Description	A CBLE SIZE	SPECS	LENGTH	Add Qty to Cart
MPCS25R	Splice Connector	1/0 or .398	6-1 STR	7.5"	ADD
MPCS28R	Splice Connector	4/0 or .563	6-7 STR	7.5"	ADD
MPCS30R	Splice Connector	266.8 Kcmil or .633	6-7 STR	7.5"	ADD
MPCS33R	Splice Connector	336.4 Kcmil or .741	30-7 STR	9"	ADD
MPCS35R	Splice Connector	397.5KCMIL OR .806	30-7 STR	8"	ADD
MPDS25T	Splice Connector	-	-	-	ADD
MPDS26T	Splice Connector	-	-	-	ADD
MPDS27T	Splice Connector	-	-	-	ADD
MPDS28T	Splice Connector	-	-	-	ADD
MPDS3291	Splice Connector	-	-	-	ADD
MPDS301	Splice Connector	-	-	-	ADD
MPDS311	Splice Connector	-	-	-	ADD
MPSA331	Splice Connector	-	-	-	ADD
