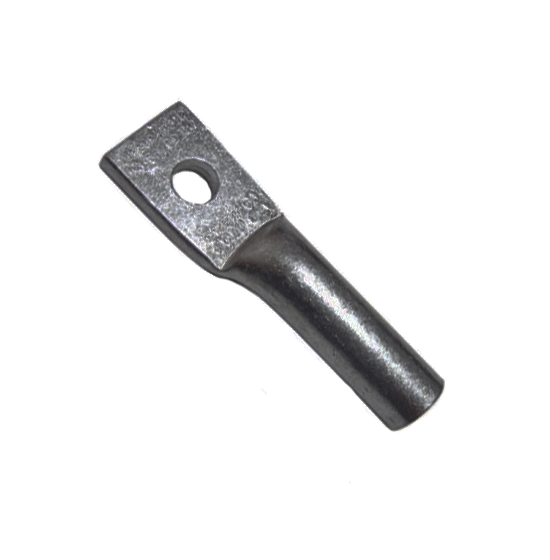

ALUMINUM LUG 1H

lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

A luminum conductors CA (bare, multiplexed or insulated network) in bars. High electric conductibility and connection by compression. Application: Electric mains (medium and high voltage). Material: Made in extruded aluminum, supplied with anti-oxidant compound INTELTROX. Extruding Process 99.99 Oxygen free product more than 30% conductivity greater than press extrude. Standard: NBR-11788 / ANSI C119,4

thumb
thumb
thumb

ALUMINUM LUG 1H

Product No. Description MAIN CONDUCTOR (MM²)CONDUCTOR (AWG/MCM) Add Qty to Cart
MPHV1H16 Aluminum Lug 1H 16 6     ADD
MPHV1H25 Aluminum Lug 1H 25 4     ADD
MPHV1H35 Aluminum Lug 1H 35 2     ADD
MPHV1H50 Aluminum Lug 1H 50 1/0     ADD
MPHV1H70 Aluminum Lug 1H 70 2/0     ADD
MPHV1H95 Aluminum Lug 1H 95 3/0     ADD
MPHV1H120 Aluminum Lug 1H 120 4/0     ADD
