Meter & Power

A luminum Sleeve For aluminum to copper or aluminum-to-aluminum with solid center barrier. Pre-filled with inhibitor and capped barrel that seals out moisture. Color-coded for easy identification sizes for industry standards. Easy entry trough cap, made with 99.99% oxygen free extruded aluminum for more conductivity. As much as 30% more connected electrons flow, with cable stop center. Crimping size of die and cable size are also printed on jacket. ANSI C 119.4

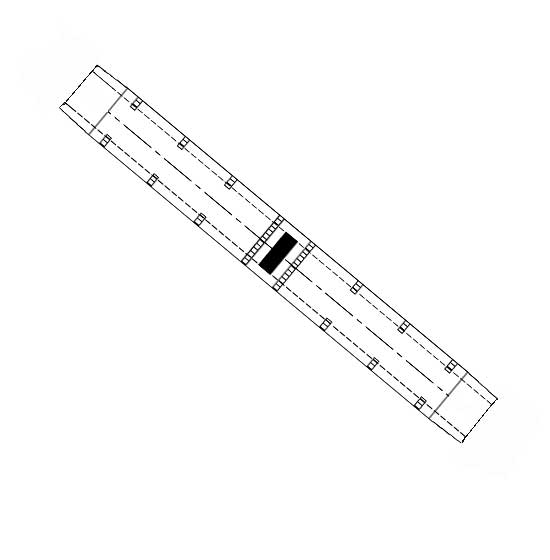

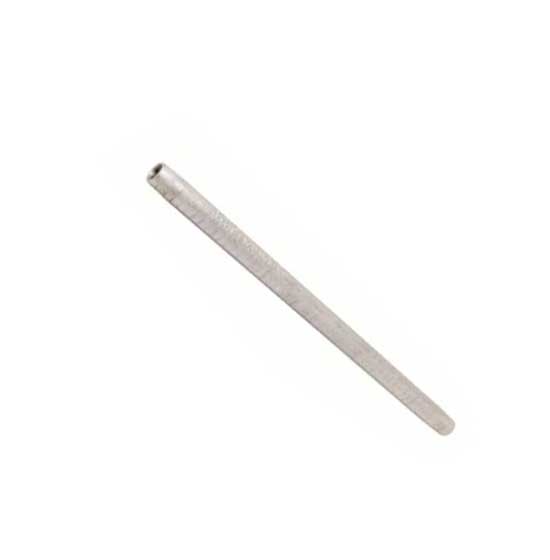

TENSION SLEEVE

Aluminum Sleeve
For aluminum to copper or aluminum-to-aluminum with solid center barrier.

Pre-filled with inhibitor and capped barrel that seals out moisture.

Color-coded for easy identification sizes for industry standards.

Easy entry trough cap, made with 99.99% oxygen free extruded aluminum for more conductivity.
As much as 30% more connected electrons flow, with cable stop center.

Crimping size of die and cable size are also printed on jacket.
ANSI C 119.4

Categories: SLEEVE CONNECTORS

TENSION SLEEVE

Product No.	Description	CONDUCTOR (AWG/MCM)	LENGTH	Add Qty to Cart
MPDS25T	TENSION CRIMP CONNECTOR	1/0 (7)	7-1/4”	ADD
MPDS26T	TENSION CRIMP CONNECTOR	2/0 (7-19)	9-1/4”	ADD
MPDS27T	TENSION CRIMP CONNECTOR	3/0 (7-19)	7-1/4”	ADD
MPDS28T	TENSION CRIMP CONNECTOR	4/0 (7-19)	10-1/2”	ADD
MPDS291T	TENSION CRIMP CONNECTOR	250 (19)	7-1/2”	ADD
MPDS301T	TENSION CRIMP CONNECTOR	266.8 (7-19)	8-1/2”	ADD
MPDS311T	TENSION CRIMP CONNECTOR	336.4 (19-37)	9-7/8”	ADD
MPDS331T	TENSION CRIMP CONNECTOR	397.5 (19)	12-1/4”	ADD
MPDS351T	TENSION CRIMP CONNECTOR	477 (19)	12-3/4’	ADD
MPDS361T	TENSION CRIMP CONNECTOR	556.5 (19-37)	12-3/4”	ADD
MPDS391T	TENSION CRIMP CONNECTOR	636 (37)	13-1/2”	ADD
