Meter & Power

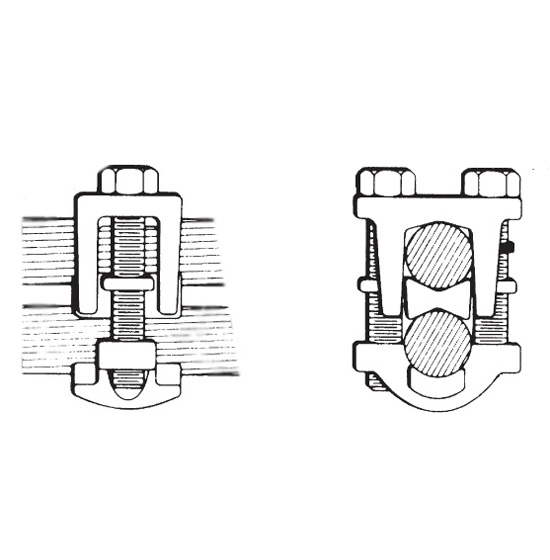

M PSUD High Strength Copper Alloy and Tin Plated for maximum conductivity. Design for all Aluminum conductors and copper alike design for easy installation with long bolt and shorter bolt with rubber ring to prevent slipping. For conductors of AAC,ACSR,AAAC and copper High Strength Mechanical Tap Connector. Please see PDF item and Chart Specifications

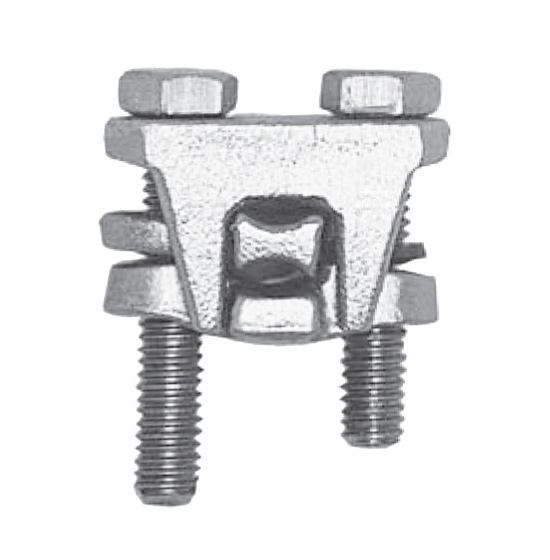

MPSUD CONNECTOR

MPSUD High Strength Copper Alloy and Tin Plated for maximum conductivity.

Design for all Aluminum conductors and copper alike design for easy installation with long bolt and shorter bolt with rubber ring to prevent slipping. For conductors of AAC,ACSR,AAAC and copper
High Strength Mechanical Tap Connector.
Please see PDF item and Chart Specifications

Categories: CONNECTORS

MPSUD CONNECTOR

Product No.	Description	CONDUCTOR (AWG/MCM)	DERIV CONDUCTOR (MM²)	TORQUE	Add Qty to Cart
MPSUD26	Mechanical Clamp Connector	2 Str-2/0 Str	6 Str-2/0 Str	180	ADD
MPSUD28	Mechanical Clamp Connector	2 Str-4/0 Str	6 Str-4/0 Str	250	ADD
MPSUD31	Mechanical Clamp Connector	250-350 Kcmil	#5-350	325	ADD
MPSUD34	Mechanical Clamp Connector	400-500 Kcmil	#4- 500	375	ADD
MPSUD40	Mechanical Clamp Connector	400-800 Kcmil	4/0 – 800	500	ADD
MPSUD44	Mechanical Clamp Connector	500-1000 Kcmil	4/0 – 1000 Kcmil	500	ADD
