DOUBLE ARMING BOLT

lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

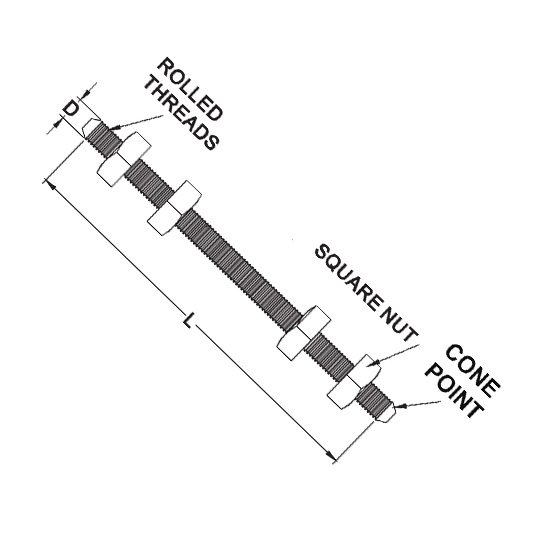

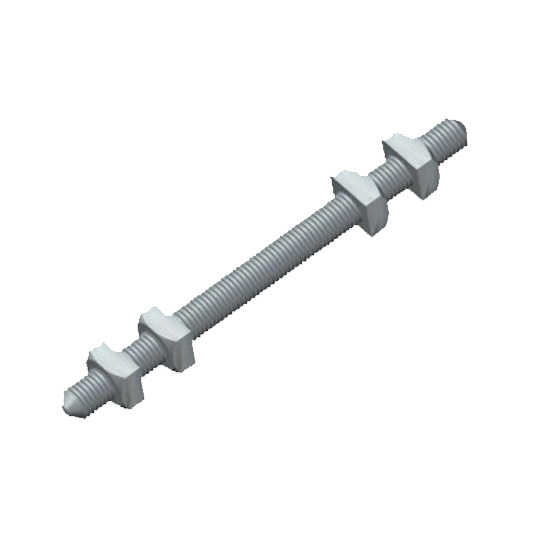

D ouble Arming Bolts are manufactured to specifications that exceeds ANSI C135.1 . Available in a range of diameters and lengths. Accompanied assembled square nut and rolled threads. Bolt length is measured from end to end. Diameters of 5/8", 3/4" and 1" diameters, with cone chamfered ends. Galvanized or Stainless Steel finish

thumb
thumb
thumb
thumb

DOUBLE ARMING BOLT

Product No. Description SIZETENSILE STRENGTHTYPE Add Qty to Cart
MPDB8860 Double Arming Bolt 5/8" X 10" 13550 LBS GALVANISED     ADD
MPDB8862 Double Arming Bolt 5/8" X 12" 13550 LBS GALVANISED     ADD
MPDB8864 Double Arming Bolt 5/8" X 14" 13550 LBS GALVANISED     ADD
MPDB8866 Double Arming Bolt 5/8" X 16" 13550 LBS GALVANISED     ADD
MPDB8868 Double Arming Bolt 5/8" X 18" 13550 LBS GALVANISED     ADD
MPDB8870 Double Arming Bolt 5/8" X 20" 13550 LBS GALVANISED     ADD
MPDB8872 Double Arming Bolt 5/8" X 22" 13550 LBS GALVANISED     ADD
MPDB8874 Double Arming Bolt 5/8" X 24" 13550 LBS GALVANISED     ADD
MPDB8876 Double Arming Bolt 5/8" X 26" 13550 LBS GALVANISED     ADD
MPDB8877 Double Arming Bolt 5/8" X 28" 13550 LBS GALVANISED     ADD
MPDB8878 Double Arming Bolt 5/8" X 30" 13550 LBS GALVANISED     ADD
MPDB8879 Double Arming Bolt 5/8" X 32" 5/8" X 34" 13550 LBS GALVANISED     ADD
MPDB8880 Double Arming Bolt 5/8" X 36" 13550 LBS GALVANISED     ADD
MPDB881 Double Arming Bolt 3/4" X 10" 13550 LBS GALVANISED     ADD
MPDB8883 Double Arming Bolt 3/4" X 12" 20050 LBS GALVANISED     ADD
MPDB8882 Double Arming Bolt 3/4" X 14" 20050 LBS GALVANISED     ADD
MPDB8884 Double Arming Bolt 3/4" X 16" 20050 LBS GALVANISED     ADD
MPDB8886 Double Arming Bolt 3/4" X 18" 20050 LBS GALVANISED     ADD
MPDB8888 Double Arming Bolt 3/4" X 20" 20050 LBS GALVANISED     ADD
MPDB8890 Double Arming Bolt 3/4" X 22" 20050 LBS GALVANISED     ADD
MPDB8892 Double Arming Bolt 5/8" X 10" 20050 LBS GALVANISED     ADD
MPDB8860S Double Arming Bolt 5/8" X 12" 13550 LBS STAINLESS STEEL     ADD
MPDB8862S Double Arming Bolt 5/8" X 14" 13550 LBS STAINLESS STEEL     ADD
MPDB8864S Double Arming Bolt 5/8" X 16" 13550 LBS STAINLESS STEEL     ADD
MPDB8866S Double Arming Bolt 5/8" X 18" 13550 LBS STAINLESS STEEL     ADD
MPDB8868S Double Arming Bolt 5/8" X 20" 13550 LBS STAINLESS STEEL     ADD
MPDB8870S Double Arming Bolt 5/8" X 22" 13550 LBS STAINLESS STEEL     ADD
MPDB8872S Double Arming Bolt 5/8" X 24" 13550 LBS STAINLESS STEEL     ADD
MPDB8874S Double Arming Bolt 5/8" X 26" 13550 LBS STAINLESS STEEL     ADD
MPDB8876S Double Arming Bolt 5/8" X 28" 13550 LBS STAINLESS STEEL     ADD
MPDB8877S Double Arming Bolt 5/8" X 30" 13550 LBS STAINLESS STEEL     ADD
MPDB8878S Double Arming Bolt 5/8" X 32" 5/8" X 34" 13550 LBS STAINLESS STEEL     ADD
MPDB8879S Double Arming Bolt 5/8" X 36" 13550 LBS STAINLESS STEEL     ADD
MPDB8880S Double Arming Bolt 3/4" X 10" 13550 LBS STAINLESS STEEL     ADD
MPDB881S Double Arming Bolt 3/4" X 12" 13550 LBS STAINLESS STEEL     ADD
MPDB8883S Double Arming Bolt 3/4" X 14" 20050 LBS STAINLESS STEEL     ADD
MPDB8882S Double Arming Bolt 3/4" X 16" 20050 LBS STAINLESS STEEL     ADD
MPDB8884S Double Arming Bolt 3/4" X 18" 20050 LBS STAINLESS STEEL     ADD
MPDB8886S Double Arming Bolt 3/4" X 20" 20050 LBS STAINLESS STEEL     ADD
MPDB8888S Double Arming Bolt 3/4" X 22" 20050 LBS STAINLESS STEEL     ADD
MPDB8890S Double Arming Bolt - 20050 LBS STAINLESS STEEL     ADD
MPDB8892S Double Arming Bolt - 20050 LBS STAINLESS STEEL     ADD
