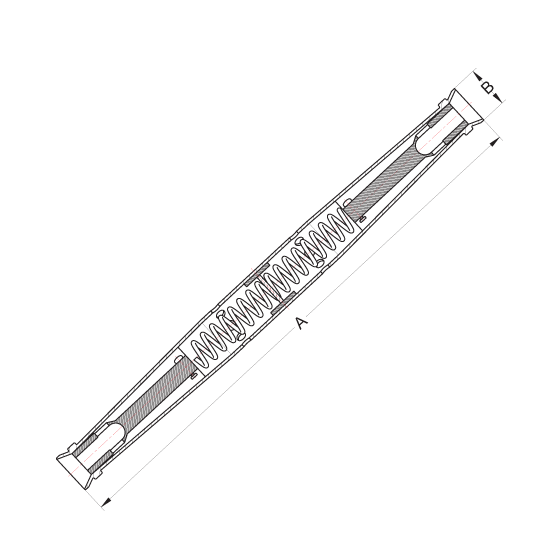

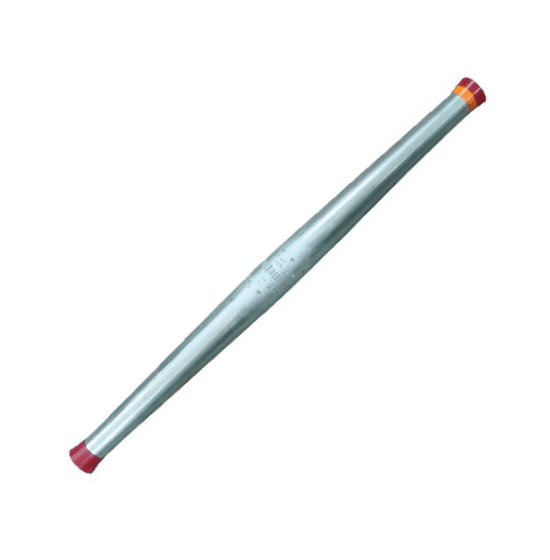

AUTOMATIC LINE SPLICE

lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

A LL GRID POWER SPLICES ARE RATED TO HOLD A MINIMUM OF 95% OF THE RATED BREAKING STRENGTH OF THE CONDUCTOR. FEATURES: * FACTORY INSTALLED INHABITOR COMPOUND * ANSI C 119. 4 FULL TENSI ON CLAS S A CONNECTOR * COLOR CODED END CAPS FOR EASY CONDUCTOR IDENTIFICATION * EASY AND FAST TO SPLICE OVERHEAD CONDUCTORS MATERIAL: * HIGH STRENGTH ALUMINUM ALLOY TUBING * INSIDE JAWS ARE ALUMINUM ALLOY

thumb
thumb
thumb
thumb

AUTOMATIC LINE SPLICE

Product No. Description RANGESPECS Add Qty to Cart
MPLS-4 Splice Connector 0.229-0.265 Red 13.75 to 0.834     ADD
MPLS-2 Splice Connector 0.265-0.335 Orange 13.75 to 0.834     ADD
MPLS-42 Splice Connector 0.229-0.340 Red-Orange 13.75 to 0.834     ADD
MPLS-10 Splice Connector 0.365-0.425 Yellow 16.25 to 1.15     ADD
MPLS-20 Splice Connector 0.425-0.475 Gray 16.25 to 1.15     ADD
MPLS-1020 Splice Connector 0.365-0.475 Gray-Yellow 16.25 to 1.15     ADD
MPLS-30 Splice Connector 0.502-0.531 Black 22.00 to 1.74     ADD
MPLS-40 Splice Connector 0.531-0.585 Pink 22.00 to 1.74     ADD
MPLS-3040 Splice Connector 0.502-0.585 Black-Pink 22.00 to 1.74     ADD
MPLS-266-366 Splice Connector 0.580-0.724 Green 22.00 to 1.74     ADD
MPLS-397 Splice Connector 0.740-0.856 Blue 22.00 to 1.85     ADD
MPLS-477A Splice Connector 0.835-0.878 Purple 32.28 to 2.24     ADD
