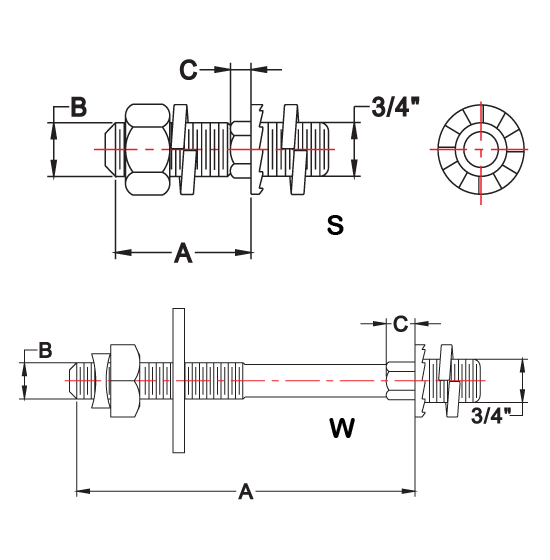

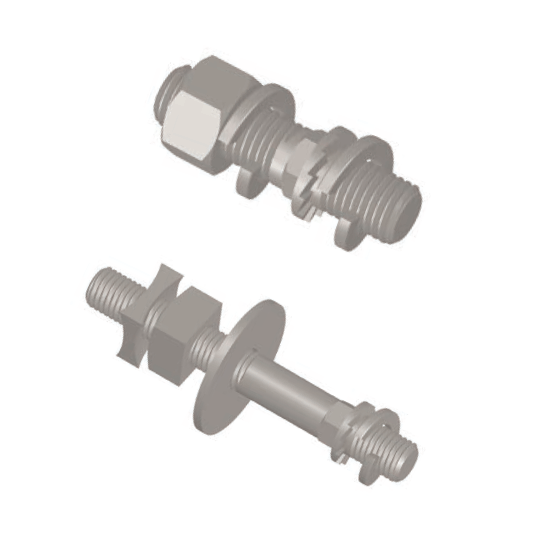

P OLE STUD BOLTS ARE USED TO ATTACH INSULATORS TO VARIOUS CROSSARM TYPES. THE STEEL ARM STUDS ARE FURNISHED WITH ONE REGULAR HEX N UT AND TWO SPRING LOCKWASHERS. THE WOOD ARM STUDS ARE FURNISHED WITH ONE REGULAR SQUARE N UT, ON E MF LOCKNUT, ONE FLAT SQUARE WASHER, AND ONE SPRING LOCKWASHER. MILL FORGED STEEL HOT DIPPED GALVANIZED TO ASTM A 153.

POST STUD BOLT & NUT

Product No.	Description	TYPE	SPECS	VOLTAGE	Add Qty to Cart
MP LPS 5834	Stud Bolt	S-STEEL	1 3/ 4"A 5/ 8"B 1/ 4"C	20 – 25	ADD
MP LPS 3434	Stud Bolt	S-STEEL	1 13/ 16"A 3/ 4"B 1/ 4"C	35 – 66	ADD
MPLPS 3434L	Stud Bolt	S-STEEL	2 1/ 2"A 3/ 4"B 1/ 4"C	35 – 66	ADD
MP LPS 587	Stud Bolt	W-WOOD	2 1/ 2"A 3/ 4"B 1/ 4"C	20 – 25	ADD
MP LPS 588	Stud Bolt	W-WOOD	7 9/1 6"A 5/ 8"B 1/ 2"C	20 – 25	ADD
MP LPS 5810	Stud Bolt	W-WOOD	8"A 5/ 8"B 1/ 2"C	20 – 25	ADD
MP LPS 5812	Stud Bolt	W-WOOD	10"A 5/ 8"B 1/ 2"C	20 – 25	ADD
MP LPS 5814	Stud Bolt	W-WOOD	12"A 5/ 8"B 1/ 2"C	20 – 25	ADD
MP LPS 347	Stud Bolt	W-WOOD	14 1/ 16"A 5/ 8"B 1/ 2"C	35 – 66	ADD
MP LPS 349	Stud Bolt	W-WOOD	7 9/1 6"A 3/ 4"B 5/ 8"C	35 – 66	ADD
MP LPS 3410	Stud Bolt	W-WOOD	9 1/1 6"A 3/ 4"B 5/ 8"C	35 – 66	ADD
MP LPS 3412	Stud Bolt	W-WOOD	10 1/ 16"A 3/ 4"B 5/ 8"C	35 – 66	ADD
