EXTENSION STRAPS


lorem ipsum dolor sit thumb
lorem ipsum dolor sit thumb

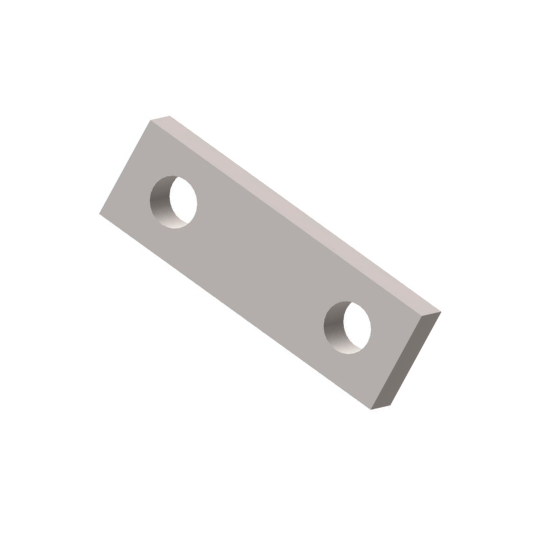

T OWER EXTENSION STRAPS ARE PRIMARILY USED TO OBTAIN PROPER TOWER CLEARANCE WITHIN A TRANSMISSION ASSEMBLY. THEY MAY BE ATTACHED TO A VARIETY OF ASSOCIATED HARDWARE. THESE STRAPS CAN BE FURNISHED IN CUSTOM SIZES. STEEL HOT DIPPED GALVANIZED TO ASTM A153.

thumb
thumb
thumb

EXTENSION STRAPS

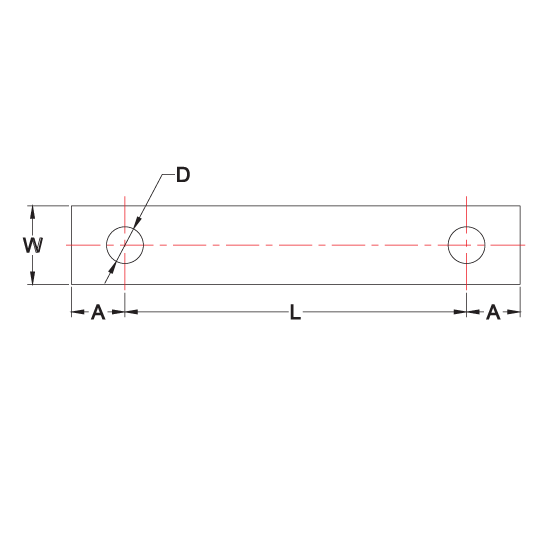

Product No. Description TENSILE STRENGTHSPECSHOLE SIZE Add Qty to Cart
MPS-10 Extension Straps 10000 LBS ¾”A x 4”L x 1-1/2”W x ¼” T 11/16”     ADD
MPS-20 Extension Straps 20000 LBS 7/8”A x 4”L x 1-1/2”W x 1/2” T 11/16”     ADD
MPS-30 Extension Straps 30000 LBS 1-1/8”A x 4”L x 2”W x3/4” T 15/16”     ADD
MPS-40 Extension Straps 40000 LBS 1-1/2”A x 4”L x 2-1/2”W x 3/4” T 15/16”     ADD
MPS-60 Extension Straps 60000 LBS 2”A x 4”L x 2-1/2”W x 1” T 1-1/8”     ADD
MPS-80 Extension Straps 80000 LBS 2”A x 4”L x 3”W x 1” T 1-1/4”     ADD
