O valeye Bolts are drop-forged, galvanized steel bolts with cone type points and rolled threads 5/8" and 3/4" and 1” diameter shanks are 1-1/2" x 2" ovaleye. Manufactured to international industry standards ANSI C 125.1 Have been tested in the field for over twenty year in harsh salty condition double hot dipped for long life.

OVALEYE BOLTS

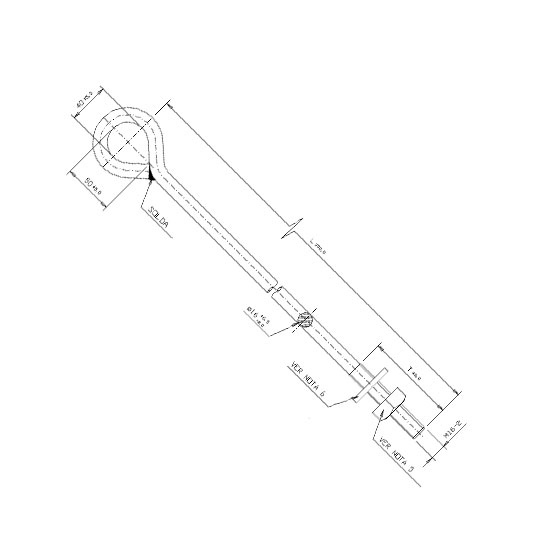

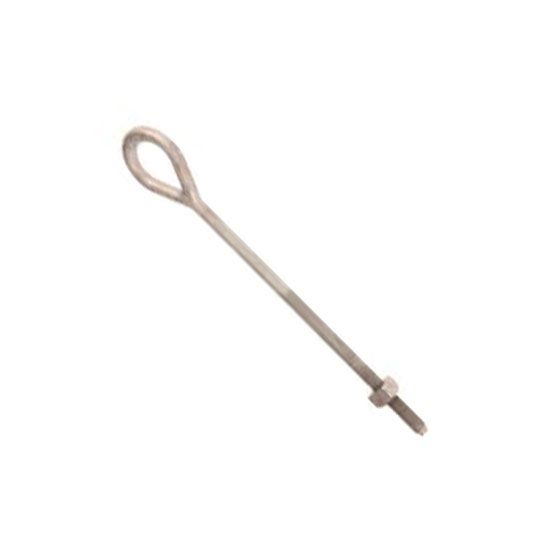

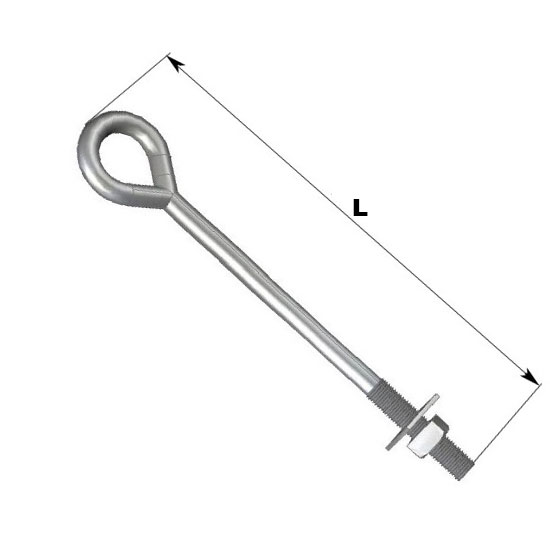

Ovaleye Bolts are drop-forged, galvanized steel bolts with cone type points and rolled threads 5/8" and 3/4" and 1” diameter shanks are 1-1/2" x 2" ovaleye.

Manufactured to international industry standards ANSI C 125.1

Have been tested in the field for over twenty year in harsh salty condition double hot dipped for long life.

Categories: LINE HARDWARE

OVALEYE BOLTS

Product No.	Description	SIZE	THREADED LENGTH	WEIGHT KG	Add Qty to Cart
MP-5806	Ovaleye Bolt	5/8” X 6”	4”	.46 kg	ADD
MP-5808	Ovaleye Bolt	5/8” X 8”	4”	.47 kg	ADD
MP-5809	Ovaleye Bolt	5/8’ X 9”	4”	.48 kg	ADD
MP-5810	Ovaleye Bolt	5/8” X 10”	6”	.55 kg	ADD
MP-5812	Ovaleye Bolt	5/8” X 12”	6”	.65 kg	ADD
MP-5814	Ovaleye Bolt	5/8” X 14”	6”	.48 kg	ADD
MP-5816	Ovaleye Bolt	5/8” X 16”	6”	0.76kg	ADD
MP-5818	Ovaleye Bolt	5/8” X 18”	6”	0.76kg	ADD
MP-5820	Ovaleye Bolt	5/8” X 20”	6”	1.01kg	ADD
MP-5822	Ovaleye Bolt	5/8” X 22”	6”	1.08kg	ADD
MP-5824	Ovaleye Bolt	5/8” X 24”	8”	1.2kg	ADD
MP-5826	Ovaleye Bolt	5/8" X 26"	8”	1.3kg	ADD
MP-5830	Ovaleye Bolt	5/8" x 30"	10”	1.5kg	ADD
MP-58808	Ovaleye Bolt	3/4" X 8"	10”	.83kg	ADD
MP-58809	Ovaleye Bolt	3/4” X 10”	10”	1kg	ADD
MP-58810	Ovaleye Bolt	3/4" X 12”	10”	1.03kg	ADD
MP-58811	Ovaleye Bolt	3/4” X 14”	10”	1.13kg	ADD
MP-58812	Ovaleye Bolt	3/4” X 16”	10”	1.22kg	ADD
MP-58813	Ovaleye Bolt	3/4” X 18”	10”	1.43kg	ADD
MP-58814	Ovaleye Bolt	3/4” X 20”	10”	1.5kg	ADD
MP-58815	Ovaleye Bolt	3/4” X 24”	10"	1.58kg	ADD
MP-58816	Ovaleye Bolt	3/4” X 30”	10"	1.62kg	ADD
MP-588818	Ovaleye Bolt	1” X 16”	10"	1.45kg	ADD
MP-588824	Ovaleye Bolt	1” X 24”	10"	2.3kg	ADD
MP-588830	Ovaleye Bolt	1” X 30”	10"	2.9kg	ADD
